SUB-20 based Universal EEPROM Programmer
Posted: Sat Apr 03, 2010 6:53 pm
by xol
In forthcoming release SUB-20 Tool will contain new tab - "PROGRAMMER". It will provide capability to program most popular I2C EEPROMs. In future tool will be extended to program SPI EEPROMs and other IC's like micro controllers with ISP (In-circuit programming).

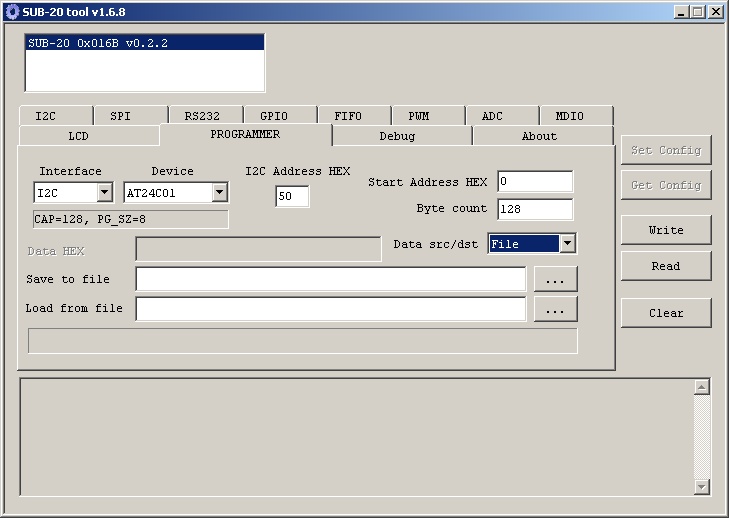

- clip0001.jpg (74.35 KiB) Viewed 24546 times
Re: SUB-20 based Universal EEPROM Programmer
Posted: Tue Apr 06, 2010 3:19 am
by serg
subtool ver1.6.8 beta binary
You can extend the internal memory device list by
1) modifying the subtool application, i.e adding appropriate structure to the ProgDialog.cpp source file
/* i2c */
mem_dev_i2c_t def_i2c_dev[]=
{
{"AT24C01", 128, 8, 0x50},
{"AT24C01", 128, 8, 0x50},
{"AT24C02", 256, 8, 0x50},
{"AT24C04", 512, 16, 0x50},
{"AT24C08", 1024, 16, 0x50},
{"AT24C16", 2048, 16, 0x50},
{"AT24C1024", 131072, 256, 0x50},
{"24LC64", 8192, 32, 0x50},
};
2) adding I2C_DEV_XXX_Y parameters to the subtool.ini file at the end of [PROG] section. The subtool.ini file is located in the same directory i.e C:\Program Files\SUB-20\bin
For example:
[PROG]
...
...
DEVICE=6
I2C_ADDR=50
...
I2C_DEV_NAME_0=24LC64
I2C_DEV_ADDR_0=0x50
I2C_DEV_CAPACITY_0=8192
I2C_DEV_PAGE_SIZE_0=32
I2C_DEV_FLAGS_0=0
I2C_DEV_NAME_1=24LC256
I2C_DEV_ADDR_1=0x50
I2C_DEV_CAPACITY_1=32768
I2C_DEV_PAGE_SIZE_1=64
I2C_DEV_FLAGS_1=0
v1.6.9
-fixed bug related to waiting for i2c device ready during write operation
-added "verify" button
Re: SUB-20 based Universal EEPROM Programmer
Posted: Fri Jun 15, 2012 4:40 am
by xol
In SUB-20 Tool 1.6.16 added support for SPI devices.
Currently supported SPI devices are:
AT25Fxxxx
NMC93xx
Currently supported I2C devices are:
AT24CXX
24LC64
